Size B205 Ceramic Blasting Media For Medical Implants And Devices Surface Treatment
Product Details:
| Place of Origin: | Zhengzhou |
| Brand Name: | Zhengtong |
| Certification: | N/A |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |

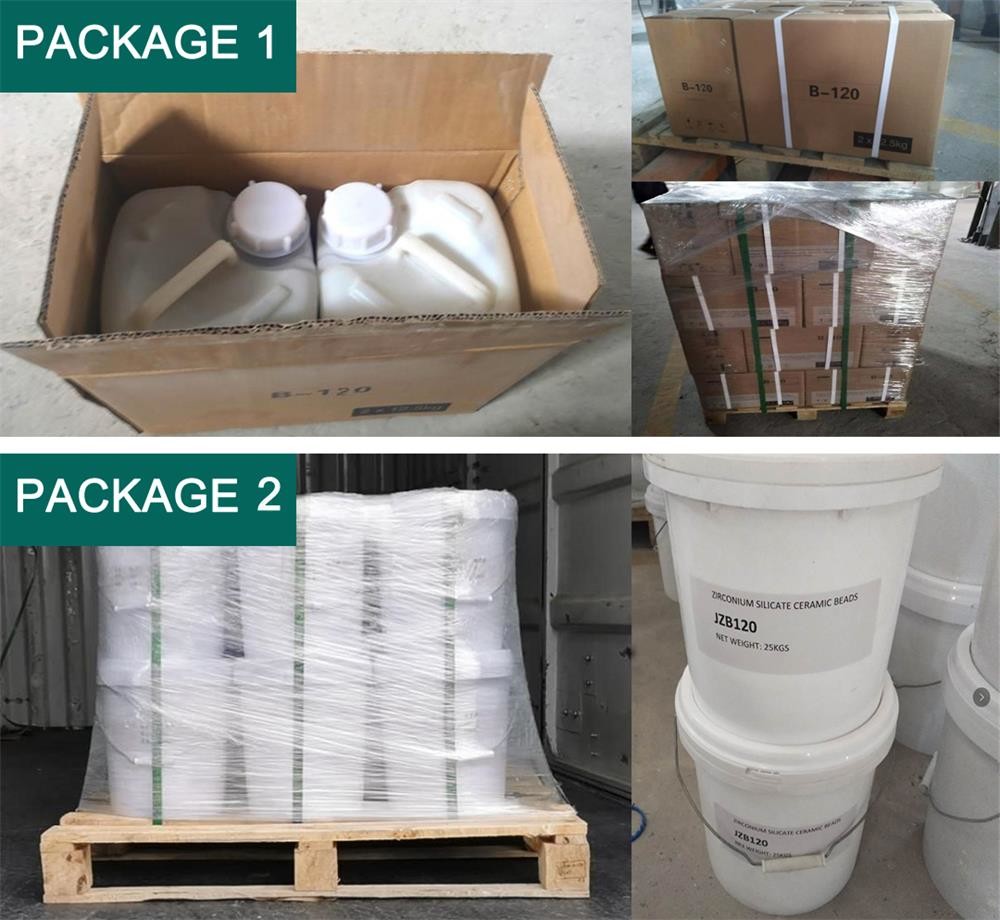

| Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
| Delivery Time: | 5-10 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Commodity Name: | Ceramic Beads Blasting Media | Chemical Index: | ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13% |
|---|---|---|---|
| Manufacturing Process: | Melting Method | Bulk Density: | 2.3g.cm3 |
| True Density: | 3.85g/cm3 | Hardness: | 700HV |
| Package: | 25kgs Paper Cartons Or 25kgs Barrels +pallet | ||
| Highlight: | B205 Ceramic Blasting Media,Medical Implants Ceramic Blasting Media,Surface Treatment Ceramic Blasting Media |
||
Product Description

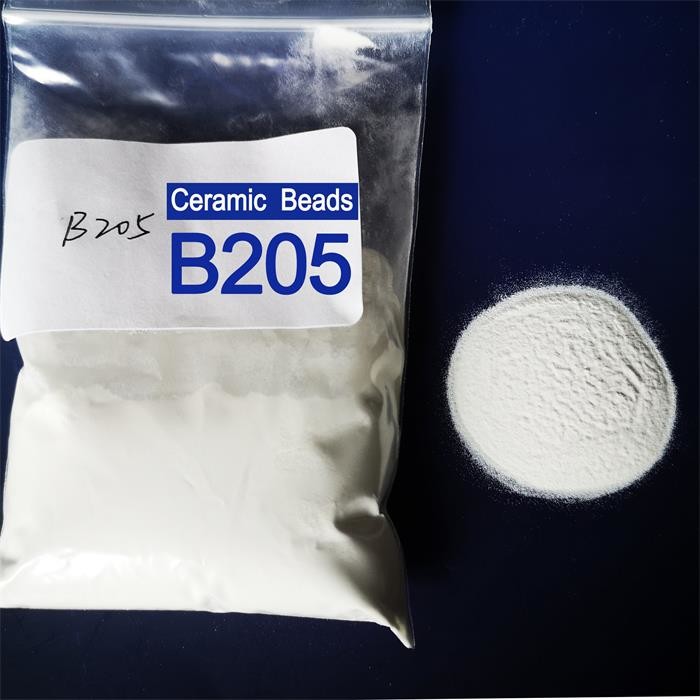

Ceramic Blasting Media size B205 for Medical Implants and Devices surface treatment
| DESCRIPTION |
Ceramic Blasting Media is a kind of zirconia based ceramic beads, spherical particles, smooth and elastic surface. Fine particles such as B205 are often used for sandblasting surface treatment of medical implants and devices.
Medical manufacturing must comply with strict industry standards, which means that medical implants and devices require a finer media for surface finishing to provide precise and smooth surface treatment. With its tiny particles and good elasticity, Ceramic Blasting Media is suitable for fine and complex surface treatment and is an ideal medium for sandblasting on the surface of medical equipment.
| SPECIFICATION |
Manufacturing process: Melting method
| ZrO2 | SiO2 | Al2O3 | Other |
| 60-66%, | 25-30% max. | 7-13% max. | 5-8% |
| Color | Bulk Density | True Specific Density | Vickers Hardness |
| White | 2.3g/cm3 | 3.85g/cm3 | 700 HV |

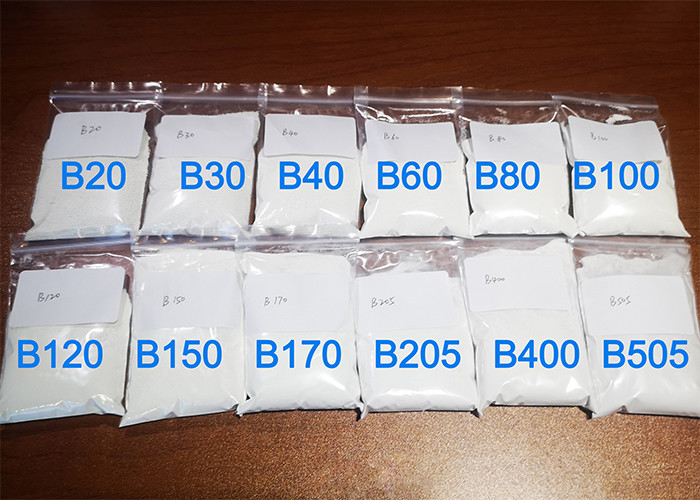

| Grit size | B20 | B30 | B40 | B60 | B80 | B100 | B120 |
| Microns μm | 600-850 | 425-600 | 250-425 | 125-250 | 180-250 | 125-180 | 63-125 |
| Grit size | B125 | B170 | B205 | B400 | B505 |
Special sizes can be customized |
|
| Microns μm | 0-125 | 45-90 | 0-63 | 30-63 | 0-63 | ||
| Grit size | Z850 | Z600 | Z425 | Z300 | Z210 | Z150 | Z100 |
| Microns | 850-1180 | 600-850 | 425-600 | 300-425 | 210-300 | 150-210 |
100-150 |
| FEATURE |
Strong chemical resistance
Guarantees constant performance eg. consistent Surface blasting effect.
Low dust emission
Does not contaminate the work piece surface, and no hidden danger of silicosis, it is harmless to the human body.
Not easy to break
Recyclable,and can reduce the refueling times, improve working efficiency.
| APPLICATION |
Ceramic Blasting Media is used as a blasting media for the surface treatment of medical implants and medical devices. It is mainly used for:
- Heart stent
- Scalpel
- Artificial bone
- Orthopedic screws
- Textured implant medical
The surface is finished by sandblasting and strengthened to extend its service life.
| APPLICABLE EQUIPMENT |
Mainly dry and wet sandblasting machine
